Factory Direct Supply 48V 52V 72V Ebike Triangle Lithium Battery

Technical Specifications

Product Overview

Unleash the full potential of your high-power electric bike with the GEB Triangle Lithium Battery Pack. Designed for enthusiasts and demanding applications, this battery utilizes the often-unused space within your bike's frame triangle, offering significant capacity and voltage options without compromising balance. Built with Grade A cells and a robust Battery Management System (BMS), it delivers exceptional performance, longevity, and safety for powerful motors and extended range requirements.

Key Features & Benefits

• High Capacity & Voltage Options: Choose from 48V, 52V, or 72V configurations with capacities ranging from 16Ah to 34Ah (or contact us for custom specifications). Perfect for long-distance rides and high-performance motors requiring substantial power.
• Space-Efficient Triangle Design: Cleverly fits into the main triangle of most standard bike frames, providing a large energy reservoir with a low center of gravity for improved handling and aesthetics.
• Premium Grade A Cells: Constructed using high-quality, Grade A lithium-ion cells known for their reliability, high energy density, consistent power output, and enhanced safety.
• Exceptional Cycle Life: Engineered for durability, offering 1000-1200 charge cycles while maintaining significant capacity, ensuring long-term value and reduced replacement frequency.
• High Discharge Capability: Capable of delivering a powerful Maximum Continuous Discharge Current of 5C (translating to potentially 90A-125A depending on capacity), ideal for motors demanding high peak power for rapid acceleration and conquering steep hills.

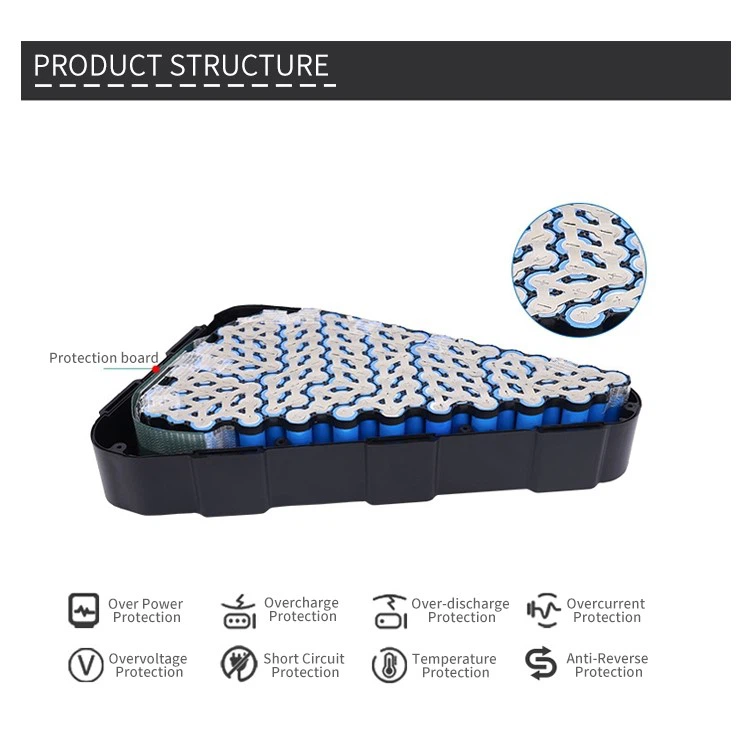

• Integrated Smart BMS: Includes an advanced Battery Management System for comprehensive protection against over-charging, over-discharging, over-current, short circuits, and temperature fluctuations, safeguarding both the battery and your e-bike system.
• Certified Safety: Meets international safety and quality standards with CE, MSDS, and UN38.3 certifications, providing assurance of its safe handling, transport, and operation.
• Customizable Solutions: Offers OEM/ODM services. Contact us to discuss tailored voltage, capacity, dimensions, or connector requirements for your specific project.
•

Ideal Applications & Compatibility

This high-performance battery is particularly well-suited for:

• High-Power Electric Bike Conversions (DIY Projects requiring maximum energy)
• Performance Electric Mountain Bikes (eMTB) tackling challenging terrain
• Electric Fat Bikes and Cargo E-bikes needing extended operational range
• Riders seeking maximum power output and minimized voltage sag under load
•

Compatibility Checklist:

Please verify the following carefully before purchasing:

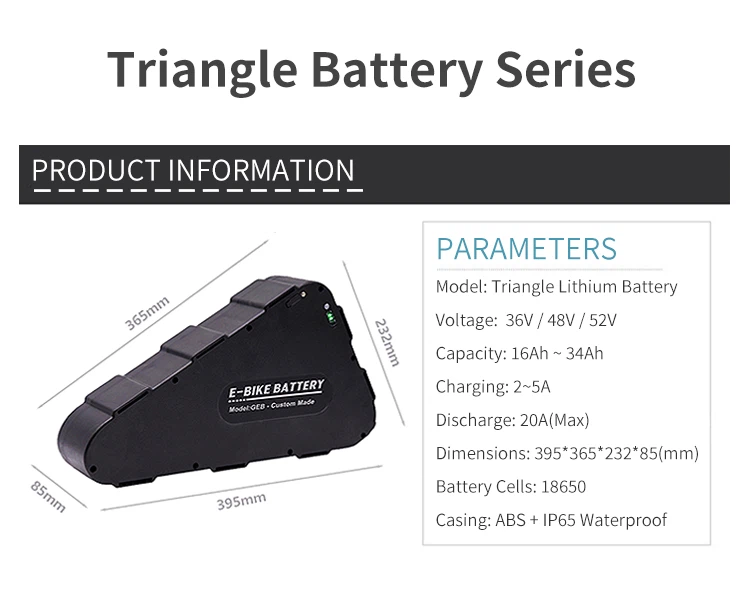

• Frame Fit: Crucially, measure the internal space of your bike's frame triangle (length of each side, available depth/width). Compare these measurements with the battery dimensions (approx. 395x255x355x75mm - subject to slight variation). Ensure sufficient clearance for the battery itself, mounting straps/brackets, and cable routing without interference.
• Voltage Matching: Select a battery voltage (48V, 52V, 72V) that EXACTLY matches your e-bike's motor and controller rated voltage. Using mismatched voltages will cause component damage and potential safety hazards.
• Power Requirements: Ensure the battery's Continuous Discharge Current capability (Rated 1C, Max 5C) meets or exceeds the peak and continuous power demands of your specific motor and controller combination. Consult your motor/controller documentation if unsure.
• Mounting Method: Triangle batteries are typically secured using heavy-duty Velcro straps or custom-made brackets bolted to frame bosses (if available). Confirm how you intend to mount it and whether mounting hardware is included or needs to be sourced separately.
• Connectors: Check the battery's discharge connector type (e.g., XT60, XT90, Anderson Powerpole - specify which connector is standard or available) and ensure it is compatible with your controller's input connector, or obtain a suitable, high-quality adapter rated for the expected current.
•

Installation & Care

Installation Guidance:

• Carefully position the battery within the frame triangle, ensuring optimal weight distribution and avoiding interference with pedals, cranks, or suspension components.
• Secure the battery firmly using appropriate high-strength straps or mounting hardware. It must not shift, vibrate excessively, or rub against the frame during riding.
• Connect the main discharge cable to your controller, paying strict attention to correct polarity (+ positive to +, - negative to -). Reverse polarity will cause severe damage.
• Neatly route and secure all cables, protecting them from pinching, abrasion, or snagging.
• Professional installation is strongly recommended if you are unfamiliar with e-bike electrical systems and wiring practices.
•

Essential Battery Care for Longevity:

• Charger Compatibility: ONLY use the charger specifically designed for this battery's voltage (48V/52V/72V) and Li-ion chemistry. Using an incorrect charger is extremely dangerous and will damage the battery voiding the warranty.

• Charging Practices: Charge in a cool, dry, well-ventilated area on a non-flammable surface. Avoid charging immediately after heavy use (allow the battery to cool). Do not leave charging unattended, especially overnight. Disconnect once fully charged.
• Temperature Management: Operate, charge, and store the battery within recommended temperature ranges (typically 0°C to 45°C for charging, -20°C to 60°C for discharging/storage - consult specific datasheet if available). Avoid prolonged exposure to direct sunlight or freezing temperatures.
• Storage Protocol: For storage longer than one month, discharge or charge the battery to approximately 40-60% state of charge. Store it in a cool, dry place disconnected from the bike. Check the voltage every 2-3 months and top up if necessary.
• Discharge Habits: Avoid completely draining the battery whenever possible. Frequent deep discharges can shorten its overall lifespan. Recharge it after use, ideally before it drops below 20% capacity.
• Physical Protection: Keep the battery casing clean and dry. Protect it from significant impacts, drops, punctures, and submersion in water. Regularly inspect connectors for cleanliness and integrity.
•

What's Included

• 1 x GEB Triangle Lithium Battery Pack (Voltage and Capacity as per your order selection)
• (Please specify clearly here if mounting straps, brackets, or other accessories ARE or ARE NOT included as standard)
• Important Note: A compatible charger is typically SOLD SEPARATELY. Please ensure you purchase or possess the correct charger for the selected battery voltage.
•

Power Your High-Performance Ride

Choose the GEB Triangle Battery for a substantial upgrade in power delivery and extended range, perfectly suited for demanding e-bike builds. Carefully select the voltage and capacity that matches your system requirements and verify all compatibility points, especially frame dimensions, before placing your order. For custom configurations or further questions, please don't hesitate to contact our support team!
