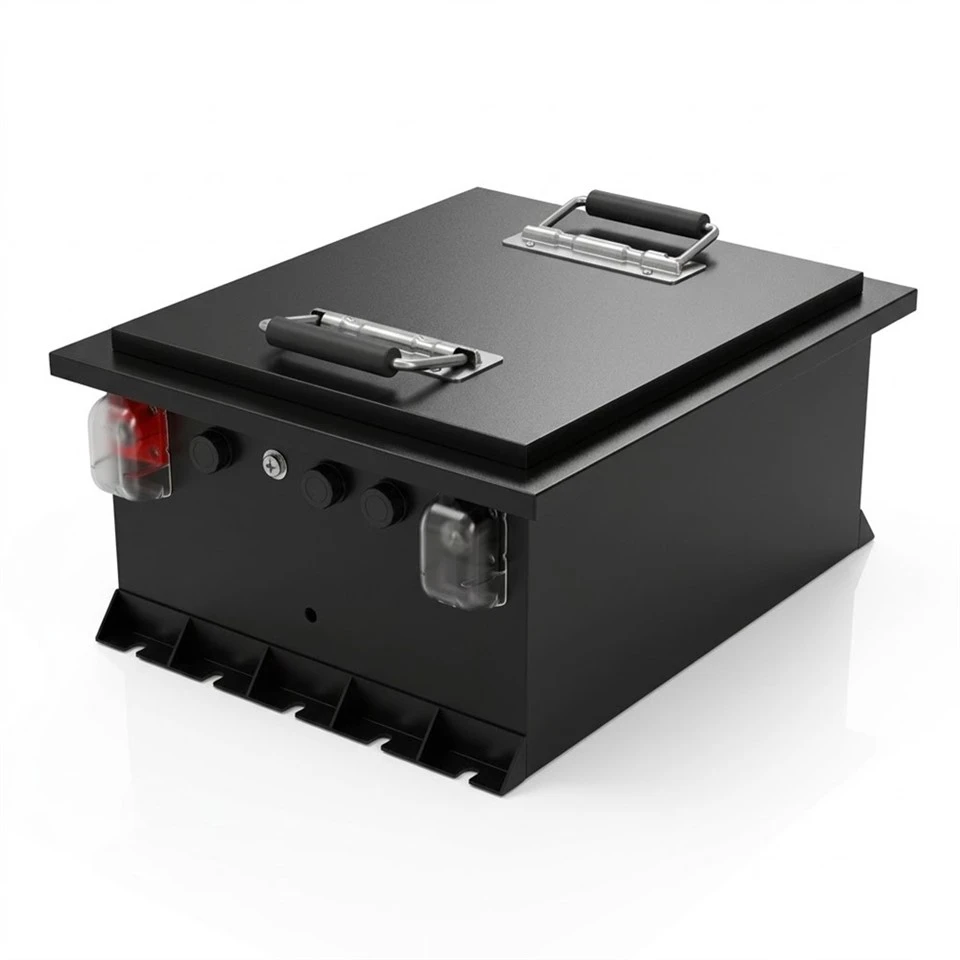

36V 38.4V 72Ah LiFePO4 Golf Cart Battery Pack (GEB-GC-01, 72A/216A)
The GEB 36V (38.4V) 72Ah Deep-Cycle LiFePO4 Golf Cart Battery (Model: GEB-GC-01) delivers 2,764.8Wh of reliable lithium power for 36V electric golf carts, utility carts, and personal transport vehicles. Configured in a 12S1P topology with high-safety prismatic cells, it provides 72A continuous discharge and a massive 216A peak acceleration pulse (30 seconds). Housed in a heavy-duty steel enclosure (400 × 332 × 178 mm, 23.0kg) with dual ergonomic folding handles, bottom flange mounting slots, protected high-current terminal studs, and multi-pin waterproof communication ports. Features Smart BMS supporting RS485, CANbus, UART, and Bluetooth smartphone app. Ultimate lightweight drop-in replacement for 6 × 6V lead-acid battery banks.
Description
General Electronics Technology Co., Ltd. is one of the leading manufacturers and suppliers of 36v 38.4v 72ah lifepo4 golf cart battery pack (geb-gc-01, 72a/216a) in China. We are committed to providing high quality custom service and OEM&ODM service to global clients. Please feel free to wholesale durable lithium battery packs in stock here and get quotation from our factory.
Direct Procurement Answer 36V (38.4V) 72Ah LiFePO4 Golf Cart Battery (GEB-GC-01)
This compact heavy-duty 36V (38.4V) 72Ah lithium iron phosphate (LiFePO4) battery pack (Model: GEB-GC-01, 2,764.8Wh stored energy) is purpose-engineered as a direct drop-in replacement for classic 36V electric golf carts, resort utility vehicles, and light transport carts running on traditional 6 × 6V flooded lead-acid batteries. Configured in a 12S1P series architecture with Grade-A prismatic cells in a heavy-gauge steel casing (400 × 332 × 178 mm, 23.0kg), it provides 72A continuous discharge and a prolonged 216A peak acceleration pulse (30 seconds) designed for steep fairway inclines. Upgrading from a 180kg 6 × 6V lead-acid pack sheds over 150kg in vehicle deadweight, dramatically improving acceleration, turf preservation, and braking distance. Before ordering, verify battery tray dimensions (≥ 410 × 345 × 190 mm), motor controller peak amps, and a matched 43.8V LiFePO4 CC/CV charger profile.
1. Electrical, Mechanical & Operating Specifications
| Series Model | GEB-GC-01 (Compact 36V Golf Cart & Utility Series) |
| Cell Configuration & Topology | 12S1P (12 Prismatic LiFePO4 Cells in Series) |
| Nominal System Voltage | 38.4 V (Industry-Standard 36V Motive Architecture) |
| Rated Capacity | 72.0 Ah (@ 0.2C discharge, 25°C) |
| Total Stored Energy | 2,764.8 Wh (Approx. 2.765 kWh) |
| Continuous Discharge Current | 72.0 A (1.0C continuous industrial discharge) |
| Peak Discharge Current & Duration | 216.0 A (3.0C high-torque acceleration pulse for 30s) |
| Max Continuous Electrical Power | ~2,765 W (Supports continuous 1.5kW–2.5kW motors) |
| Instant Peak Acceleration Power | ~8,294 W (Supports over 8.2kW surge under heavy incline loading) |
| Operating Voltage Window | 30.0V (Discharge Cutoff) – 43.80V (Full Charge Cutoff) |
| Recommended Charging Current | 15.0A – 36.0A (0.2C – 0.5C CC/CV Fast Charging) |
| Smart BMS Communication | Integrated RS485, CAN 2.0B / CANopen, UART & Bluetooth BLE 5.0 Smartphone App |
| Enclosure Construction | Heavy-Gauge Cold-Rolled SPCC Steel, Industrial Black Powder Coating, Slotted Base Flanges |
| Handles & Structural Hardware | Dual Heavy-Duty Ergonomic Folding Handles with Rubberized Grips |
| High-Current Power Terminals | Heavy-Duty Threaded Copper Studs with Clear Protective Insulating Boots (Red+/Black-) |
| Communication & Expansion Ports | Threaded Waterproof Multi-Pin Aviation Sockets with Protective Rubber Caps |
| External Physical Dimensions | 400 × 332 × 178 mm (15.75 × 13.07 × 7.01 in) |
| Total Battery Net Weight | 23.0 kg (50.7 lbs) |
| Deep Cycle Service Life | ≥ 3,500 Full Cycles (@ 80% DoD, 25°C, residual capacity ≥ 80%) |
| Operating Temperature Range | Charging: 0°C ~ 45°C | Discharging: -20°C ~ 60°C |
| Quality & Transport Compliance | UN38.3, MSDS, CE, RoHS, ISO9001:2015 Manufacturing Standards |
2. 36V Golf Cart Retrofit & Fleet Drop-In Compatibility
- Target 36V Golf Cart Models: Directly compatible with popular 36V electric golf carts and personal utility vehicles, including EZ-GO TXT (36V), Medalist, Marathon; Yamaha G2, G8, G9, G14, G16, G19, G22 (36V series); Club Car DS (pre-1995 36V models); and Cushman / Columbia ParCar industrial utility buggies.
- Tremendous 150kg+ Deadweight Reduction: Traditional 36V setups employ six 6V deep-cycle flooded batteries (such as Trojan T-105 or US Battery 2200), totaling 170kg to 180kg. The GEB-GC-01 weighs just 23.0 kg-slashing deadweight by over 85%. This reduction delivers faster acceleration, eliminates rear-suspension sagging, improves braking distance, and prevents tire ruts on wet golf turf.
- Effortless Drop-In Installation: With compact physical dimensions of 400 × 332 × 178 mm, the battery easily fits inside the original under-seat battery tray (which traditionally accommodates six 6V blocks). Integrated slotted base flanges allow secure bolt-down fastening directly to existing chassis tray frames.
- Zero Maintenance & No Acid Corrosion: Completely eliminates toxic sulfuric acid spills, terminal corrosion, terminal jumper cable maintenance, and weekly distilled water topping routines.
- Matched 43.8V LiFePO4 Charger Required: Must be charged with a dedicated 36V (12S) LiFePO4 CC/CV charger with a 43.8V cutoff voltage. Legacy lead-acid ferroresonant chargers or smart chargers with desulfation equalization modes must be disconnected.
3. Heavy-Duty Mechanical Architecture & Smart BMS Engineering
1. Reinforced Steel Enclosure with Base Flanges
Fabricated from heavy cold-rolled SPCC steel sheet with industrial textured black powder coating. Slotted bottom flanges provide multi-point bolt-down points, preventing battery bounce across bumpy turf and gravel pathways.
2. Dual Ergonomic Rubberized Folding Handles
Features dual heavy-duty stainless folding handles with cushioned rubber grips. Allows ergonomic, single-person or two-person drop-in lowering into deep under-seat battery wells without pinching fingers.
3. Protected Copper Terminals & Aviation Sockets
Equipped with heavy-duty copper post studs housed under transparent snap-on insulated protective covers to prevent accidental tool short-circuits. Waterproof multi-pin aviation connectors provide secure CAN/RS485 communication.
4. Prolonged 216A (30s) Incline Current Tolerance
Unlike standard lithium packs that trip overcurrent protection within 3–5 seconds, the GEB-GC-01 Smart BMS is custom-tuned to sustain 216A for up to 30 continuous seconds, effortlessly scaling steep golf course hills with two passengers and full bag loads.
4. Engineering Judgment & Operating Boundaries
Recommended Operating Scenarios
Ideal for 36V electric golf carts, community runabouts, airport perimeter maintenance buggies, resort service carts, and gated residential neighborhood electric vehicles requiring 25km to 45km (15 to 28 miles) daily operating range per charge.
Operating Boundaries & Constraints
Do not connect in series to construct 72V packs (use the dedicated GEB-ET-02 for 72V systems). Discontinue charging below 0°C unless housed in an insulated/heated bay. For heavy commercial 36V utility towing exceeding 300A sustained current draw, consult GEB engineering for an upgraded dual-pack or parallel setup.
5. B2B OEM / ODM Customization & Fleet Support
Shenzhen General Electronics Technology Co., Ltd. (GEB) supports golf cart dealerships, maintenance workshops, and fleet conversion shops globally:
Factory-terminated cables matching OEM EZ-GO, Yamaha, and Club Car solenoid and controller ring lugs with matched cable gauges (2AWG / 4AWG).
Brand-customized iOS and Android Bluetooth apps displaying company branding and customized telemetry metrics for dealership service networks.
Optional round 2-inch or rectangular dash-mounted digital battery fuel gauge with plug-and-play wiring connecting to the battery aviation port.
Matched high-efficiency 15A to 25A on-board or portable IP67 waterproof aluminum chargers with receptacle plugs for EZ-GO, Yamaha, or Club Car.
6. B2B Procurement & International Transport Compliance
- Sample Order Lead Time: 5 to 7 business days with individual factory bench inspection reports.
- Volume Production Lead Time: 15 to 20 business days depending on volume.
- MOQ (Minimum Order Quantity): 1 unit for sample evaluation; 10+ units for volume distributor pricing.
- Dangerous Goods Freight Compliance: Certified with official UN38.3 Test Summary Reports, MSDS, 1.2m drop test compliance, and sea/air transport condition appraisals. Shipped in reinforced export wooden crates meeting Class 9 DG maritime regulations.
- Manufacturer Warranty: 36 to 60 months commercial manufacturer warranty backed by GEB technical support and rapid component replacement.
7. Frequently Asked Questions (FAQ)
Q1: Can the GEB-GC-01 directly replace my six 6V Trojan lead-acid batteries?
A: Yes! The GEB-GC-01 is a single-box 36V (38.4V nominal) lithium solution. You remove all six heavy 6V lead-acid batteries and intermediate jumper cables, drop this 23kg unit into the central tray, fasten it with the slotted base flanges, and connect the main positive and negative cables to your solenoid and controller.
Q2: What is the expected driving range on a standard 36V golf cart?
A: On a standard 2-to-4 passenger golf cart consuming 60–80Wh per kilometer, a full 2,764.8Wh charge provides approximately 35km to 45km (22 to 28 miles) of driving range under standard golf course conditions-ample power for 36 to 54 continuous holes of golf.
Q3: Why is the 216A peak discharge rated for 30 seconds instead of the usual 3–5 seconds?
A: Golf course fairways frequently feature long, sustained elevation climbs that take 15 to 25 seconds to summit. Standard commercial BMS units often shut off after 3–5 seconds of 200A draw. The GEB-GC-01 is specifically engineered with heavy-duty MOSFETs and optimized heat dissipation to sustain 216A for 30 full seconds without nuisance BMS tripping.
Q4: What parameters can I check using the Bluetooth smartphone App?
A: The smartphone App connects directly to the internal BMS and displays real-time battery voltage, current draw/charge rate, state of charge (SOC%), individual voltages for all 12 series cells, internal temperature sensor data, and cumulative lifetime cycle count.
