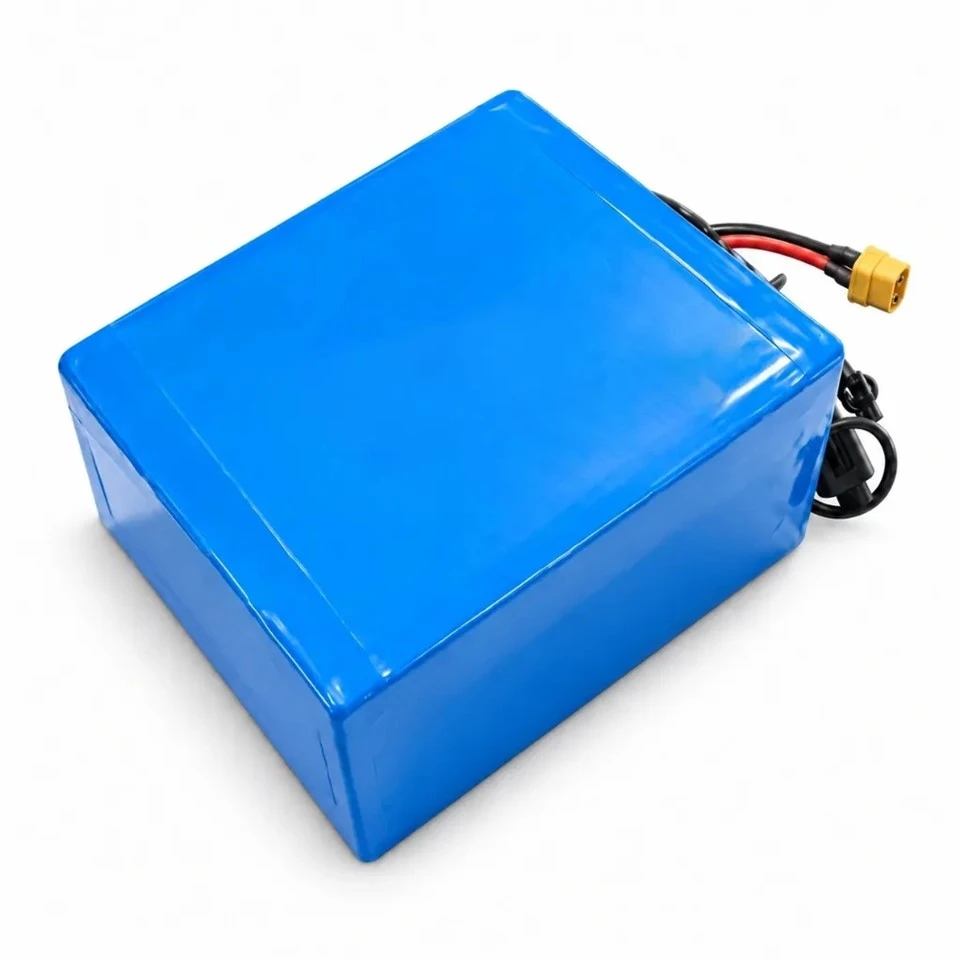

48V 10.4Ah PVC Ebike Lithium Battery Pack (GEB-ES-07, 250W-500W)
The GEB 48V 10.4Ah (499.2Wh) PVC Ebike Lithium Battery Pack (Model: GEB-ES-07) is engineered for 250W to 500W electric bicycles, e-scooters, and custom conversion setups. Built in a 13S4P configuration with 52 Grade-A 18650 cylindrical cells (2600mAh) and certified to UL2271 safety standards, it features an integrated 20A continuous smart BMS (40A peak pulse) housed in an industrial flame-retardant blue heat shrink PVC enclosure. Equipped with high-current XT60 discharge connectors and 2-pin DC charging port. Verify compartment tray clearance (178 × 137 × 80 mm) and 54.6V lithium charger compatibility before ordering.
Description
General Electronics Technology Co., Ltd. is one of the leading manufacturers and suppliers of 48v 10.4ah pvc ebike lithium battery pack (geb-es-07, 250w-500w) in China. We are committed to providing high quality custom service and OEM&ODM service to global clients. Please feel free to wholesale durable lithium battery packs in stock here and get quotation from our factory.
Commercial Scrubber Power & Engineering Overview
This 24V (25.6V) 200Ah heavy-duty industrial LiFePO4 battery pack (8S1P, 5120Wh) delivers high continuous current (200A continuous, 400A 30s pulse) for ride-on commercial floor scrubbers and heavy industrial sweepers. Replacing multi-block 6V/12V lead-acid series banks with this single-case pack cuts maintenance to zero and saves over 80kg in machine tare weight. Verify machine tray dimensions (350 × 420 × 260 mm) and 29.2V charger compatibility before ordering.
Verified Engineering Specifications (GEB-FCM-02)
| Technical Parameter | Factory Benchmark & Tolerance Range |
|---|---|
| Model | GEB-FCM-02 |
| Nominal Voltage | 25.6V (Operating Range: 20.0V - 29.2V) |
| Rated Capacity | 200.0Ah (5,120.0Wh @ 0.2C discharge) |
| Cell Type & Configuration | Grade-A High-Capacity Prismatic LiFePO4 / 8S1P (or 8S2P) |
| Continuous Discharge Current | 200A (1.0C continuous heavy-duty rating) |
| Peak Discharge Current | 400A (≤ 30 seconds high-torque pulse) |
| Charge Cut-off Voltage | 29.2V ± 0.2V (Recommended 30A - 50A fast charger) |
| Discharge Cut-off Voltage | 20.0V |
| Enclosure Dimensions (L × W × H) | 350 × 420 × 260 mm (13.78 × 16.54 × 10.24 in) |
| Total Battery Weight | 40.0 kg (88.18 lbs) |
| Terminal Type | Heavy-Duty M8 Brass Studs with Color-Coded Protective Insulating Covers |
| Cycle Life | ≥ 3,500 cycles (@ 25°C, 80% DoD, 0.5C/0.5C, residual capacity ≥ 80%) |
| Operating Temperature | Charge: 0°C ~ 45°C | Discharge: -20°C ~ 60°C |
| Enclosure Material | Heavy-Gauge Industrial Steel Enclosure with Dual Recessed Lifting Handles |
| Certifications | UN38.3, MSDS, CE, RoHS, ISO9001 Factory Quality Standard |
Floor Scrubber & Sweeper Machinery Compatibility
Compatible Commercial Equipment: Tennant T12 / T16 / T7 / M20, Nilfisk BR755 / BR850 / SC6000, Kärcher B 150 R / B 200 R, Viper AS710R, IPC Eagle CT160 / CT230 commercial ride-on scrubbers and sweepers.
Pre-Installation Check: Ensure tray bay depth accommodates 430mm width and 270mm height. For ride-on scrubbers previously equipped with 4 × 6V lead-acid deep cycle batteries in series, this single-box replacement reduces weight by over 80kg while doubling usable daily runtime.
Heavy-Duty Industrial Safety Architecture
- Premium Grade-A LiFePO4 Prismatic Cells: Intrinsically safe chemistry eliminates thermal runaway risks even under severe vibration, deep discharge, or high continuous scrubbing motor loads.
- High-Current Industrial BMS: Integrated solid-state battery management system continuously monitors individual cell voltages, pack temperature, and discharge currents up to 400A (≤ 30 seconds high-torque pulse).
- Drop-in Lead-Acid Replacement: Eliminates acid spills, terminal corrosion, water refilling, and explosive hydrogen gassing during indoor facility charging.
- Heavy-Gauge Sheet Metal Casing: Powder-coated industrial enclosure with reinforced seams protects internal electronics from floor cleaning detergents, moisture, and mechanical shocks.
OEM / ODM Customization & Sourcing Workflow
Shenzhen General Electronics Technology Co., Ltd. (GEB) manufactures specialized custom lithium solutions for commercial cleaning equipment OEMs and fleet management companies:
Customizable discharge ports (Anderson SB50, SB175, REMA DIN 80/160, M8 studs), integrated state-of-charge LCD displays, and RS485/CAN communication options for robotic scrubbers.
Certified UN38.3 test reports, MSDS, CE, and RoHS documentation. Fully compliant dangerous goods sea freight (LCL/FCL) with door-to-door delivery.
Frequently Asked Questions (FAQ)
Q1: Can I charge this battery with the scrubber's existing lead-acid charger?
A: You must ensure the charger has a LiFePO4 setting or replace it with a dedicated 24V (29.2V) lithium charger. Standard lead-acid equalization cycles (31V+) can damage the BMS.
Q2: How much runtime can I expect from a single charge?
A: For the 100Ah pack (GEB-FCM-01), typical walk-behind scrubbers (consuming 25A-35A) achieve 3.5 to 4.5 hours of continuous runtime. For the 200Ah pack (GEB-FCM-02), ride-on scrubbers achieve 6 to 8 hours of full-shift operation.
Q3: What is the sample lead time and MOQ for OEM orders?
A: Evaluation samples are available with a 7-day turnaround. Standard wholesale MOQ is 2 to 10 units, with volume discounts available for fleet operators and machine manufacturers.
