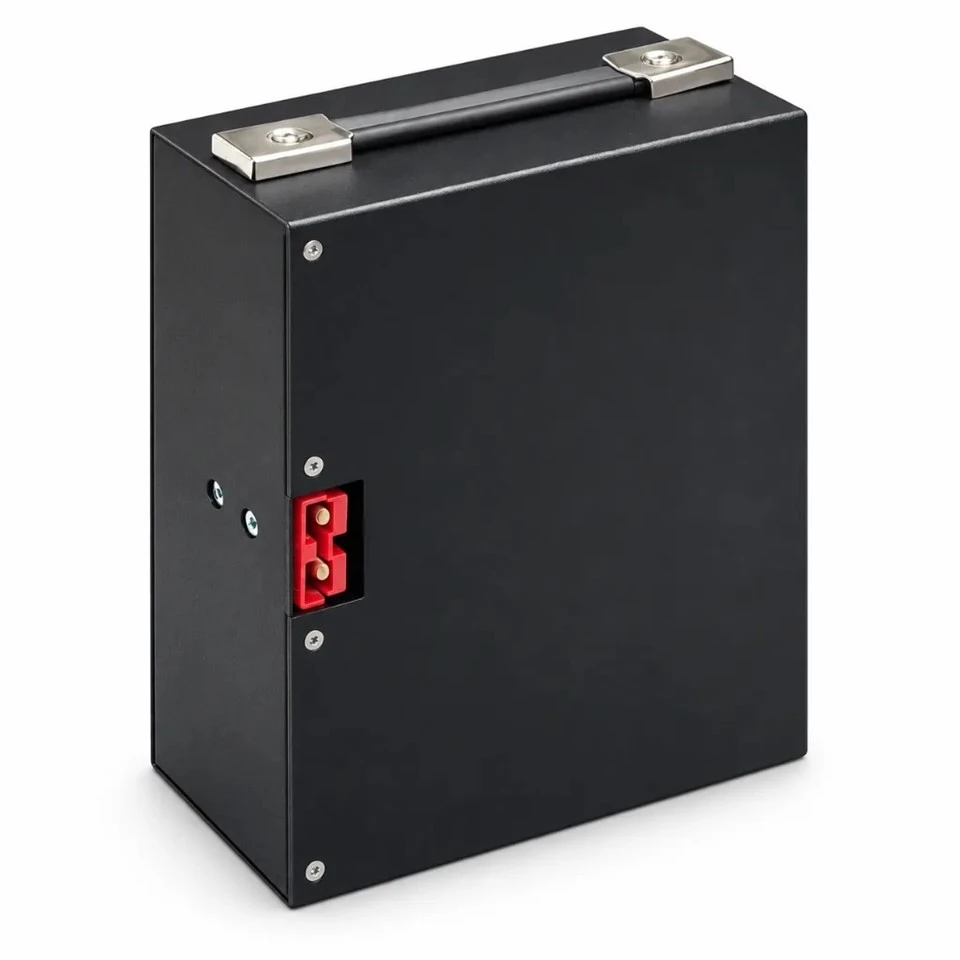

24V 48V Industrial Electric Forklift Lithium Battery Pack (GEB-EF-01, Steel Case 30A)
The GEB 24V/48V Industrial Electric Forklift Lithium Battery Pack (Model: GEB-EF-01) delivers reliable deep-cycle power for light-duty electric forklifts, electric pallet jacks, walkie stackers, and automated guided vehicles (AGVs). Built with Grade-A 18650 cells housed in a heavy-duty powder-coated sheet steel enclosure (210 × 175 × 85 mm) with an integrated top carrying handle and side-mounted 2-pin quick-disconnect terminals. Features a 30A continuous industrial BMS. Available in 24V (20Ah/25Ah) and 48V (13Ah/15Ah) configurations. Verify tray dimensions and charger cutoff voltage before retrofitting.
Description
General Electronics Technology Co., Ltd. is one of the leading manufacturers and suppliers of 24v 48v industrial electric forklift lithium battery pack (geb-ef-01, steel case 30a) in China. We are committed to providing high quality custom service and OEM&ODM service to global clients. Please feel free to wholesale durable lithium battery packs in stock here and get quotation from our factory.
Forklift & Industrial Power Engineering Overview (GEB-EF-01)
This industrial lithium-ion battery pack (GEB-EF-01 series) is engineered for commercial electric forklifts, walkie pallet trucks, and AGV warehouse robotics requiring a rugged, vibration-resistant power source. Encased in a heavy-gauge powder-coated sheet metal enclosure (210 × 175 × 85 mm) with a reinforced top handle and 30A continuous BMS, it is available in 24V (7S8P 20Ah / 7S10P 25Ah) and 48V (13S5P 13Ah / 13S6P 15Ah) configurations. Before drop-in replacement, confirm compartment dimensions, connector pinout, and ensure your charger matches the target CC/CV lithium profile (29.4V for 24V packs; 54.6V for 48V packs).
GEB-EF-01 Platform Selection & Dimension Matrix
The GEB-EF-01 modular platform utilizes a standardized 210 × 175 × 85 mm heavy-gauge steel casing across all capacity variants, simplifying machine retrofits and fleet battery standardization:
| Model Parameter | Topology | Cell Specification | Stored Energy | Continuous Current | Dimensions (L×W×H) | Total Weight |
|---|---|---|---|---|---|---|
| 24V 20Ah | 7S8P | 18650 2.6Ah (56 PCS) | 504.0 Wh | 30A Continuous | 210 × 175 × 85 mm | 4.8 kg |
| 24V 25Ah | 7S10P | 18650 2.6Ah (70 PCS) | 630.0 Wh | 30A Continuous | 210 × 175 × 85 mm | 5.5 kg |
| 48V 13Ah | 13S5P | 18650 2.6Ah (65 PCS) | 625.3 Wh | 30A Continuous | 210 × 175 × 85 mm | 5.3 kg |
| 48V 15Ah | 13S6P | 18650 2.6Ah (78 PCS) | 721.5 Wh | 30A Continuous | 210 × 175 × 85 mm | 5.9 kg |
Verified Engineering Specifications (GEB-EF-01 Series)
| Technical Parameter | Factory Benchmark & Quality Standard |
|---|---|
| Series Model | GEB-EF-01 (Electric Forklift / AGV Series) |
| Voltage Configurations | 24V Platform (25.2V Nominal) & 48V Platform (48.1V Nominal) |
| 24V Operating Voltage Range | 21.0V (Discharge Cutoff) - 29.4V (Full Charge Cutoff) |
| 48V Operating Voltage Range | 39.0V (Discharge Cutoff) - 54.6V (Full Charge Cutoff) |
| Rated Capacities Available | 24V 20Ah / 24V 25Ah / 48V 13Ah / 48V 15Ah |
| Cell Chemistry & Format | Grade-A 18650 Cylindrical Cells (2600mAh High-Density NCM) |
| Continuous Discharge Current | 30A (Heavy-Duty Sustained Industrial Load) |
| Peak Discharge Current | 60A (≤ 10 seconds high-torque acceleration pulse) |
| Recommended Charging Current | 5A - 10A (0.2C - 0.5C CC/CV Charging) |
| Housing & Casing Material | Heavy-Gauge Cold-Rolled Sheet Steel with Matte Black Powder Coating |
| Mechanical Features | Integrated Stainless/Alloy Top Carry Handle & Recessed Connector Cavity |
| Standard Terminals | Side-Mounted 2-Pin High-Current Quick Disconnect (Anderson Compatible) |
| External Dimensions (L × W × H) | 210 × 175 × 85 mm (8.27 × 6.89 × 3.35 in) [All Variants] |
| Net Weight Range | 4.8 kg to 5.9 kg (Depending on cell configuration) |
| Cycle Life Performance | ≥ 1,000 Full Cycles (@ 80% DoD, 25°C, residual capacity ≥ 80%) |
| Operating Temperature | Charging: 0°C ~ 45°C | Discharging: -20°C ~ 60°C |
| Industrial Compliance | UN38.3, MSDS, CE, RoHS, ISO9001:2015 Manufacturing Quality Standards |
Industrial Machinery & Material Handling Compatibility
- Target Equipment: Light-duty electric forklifts, electric pallet trucks (walkie pallet jacks), compact walkie stackers, warehouse tuggers, and Automated Guided Vehicles (AGV / AMR) manufactured by brands such as Heli, Hangcha, Noblelift, EP Equipment, Linde, Jungheinrich, and Toyota material handling systems.
- Drop-in Lead-Acid Replacement: Directly replaces multi-block AGM or flooded lead-acid batteries. Delivers zero acid maintenance, no watering requirements, zero hydrogen outgassing during indoor warehouse charging, and saves over 50% in battery tare weight.
- Compartment Verification: Confirm that the equipment's battery tray bay measures at least 220 × 185 × 95 mm to accommodate the steel hardcase, handle clearance, and connector mating.
- Dedicated Lithium Charger Setup: Must be paired with a matching CC/CV industrial lithium charger (29.4V cutoff for 24V packs; 54.6V cutoff for 48V packs). Never use uncontrolled legacy lead-acid chargers with desulfation/equalization cycles.
Heavy-Duty Mechanical Protection & BMS Safety Architecture
1. Reinforced Steel Enclosure
Constructed from heavy-gauge cold-rolled sheet steel with a powder-coated finish. Provides maximum impact protection against forklift tray collisions, dropped tools, and harsh warehouse environments.
2. Ergonomic Top Carrying Handle
Equipped with an integrated heavy-duty alloy handle anchored directly into the steel top plate, allowing fast, safe, and ergonomic hot-swapping during multi-shift logistics operations.
3. 30A Industrial Smart BMS
Built-in solid-state BMS features 30A continuous rating (60A peak pulse), cell over-voltage (4.25V), under-voltage (3.00V), short-circuit recovery (300μs cutoff), and multi-point NTC temperature monitoring.
4. Recessed Quick-Disconnect Socket
Flush-mounted side port shields the high-current 2-pin electrical connector from accidental mechanical shear stresses during installation and rugged machinery operation.
OEM / ODM Engineering & Customization Services
Shenzhen General Electronics Technology Co., Ltd. (GEB) partners directly with material handling OEMs, AGV robotics developers, and equipment retrofitting contractors:
Customizable terminal configurations (Anderson SB50, SB120, SB175, REMA DIN 80/160), integrated digital state-of-charge (SoC) meters, and CANBus / RS485 communication protocols for AGV fleet integration.
Custom prismatic LiFePO4 or high-capacity 21700 NMC packs up to 48V 100Ah+, tailored enclosure dimensions, and customized mounting flange brackets.
B2B Procurement & International Transport Compliance
- Sample Lead Time: 5 to 7 business days with factory testing logs.
- Mass Production Lead Time: 15 to 20 business days based on order size.
- MOQ: 2 units for prototype testing; 30 units for volume OEM production.
- Dangerous Goods Compliance: Fully certified with UN38.3 test summary reports, MSDS, 1.2m drop test certification, and sea/air transport condition appraisals. Compliant packaging for worldwide DDP/FOB delivery.
- Manufacturer Warranty: 24 months standard industrial warranty with prompt engineering technical support.
Frequently Asked Questions (FAQ)
Q1: How do I choose between the 24V and 48V models of GEB-EF-01?
A: Check your material handling equipment's electrical rating. Light-duty electric pallet trucks and compact walkie stackers typically run on 24V systems (select 24V 20Ah or 25Ah). Medium-duty forklifts and high-speed AGVs typically require 48V systems (select 48V 13Ah or 15Ah).
Q2: What is the benefit of the steel case compared to plastic or shrink-wrapped packs?
A: Electric forklifts and pallet jacks endure continuous mechanical shock, vibration, and dust in warehouse environments. The cold-rolled steel housing protects internal cells from physical deformation, punctures, and mechanical wear, ensuring extended industrial operational life.
Q3: Can this pack support opportunity charging during operator breaks?
A: Yes. Unlike lead-acid batteries which require full 8-hour charge cycles and cooling periods, the Grade-A lithium cells in GEB-EF-01 accept fast opportunity charging at up to 0.5C without memory effect or premature capacity degradation.
Q4: What certifications are provided for global customs clearance?
A: Every shipment includes complete UN38.3 test summary reports, official MSDS, CE certification, RoHS compliance, and certified sea/air freight transport condition documentation.
