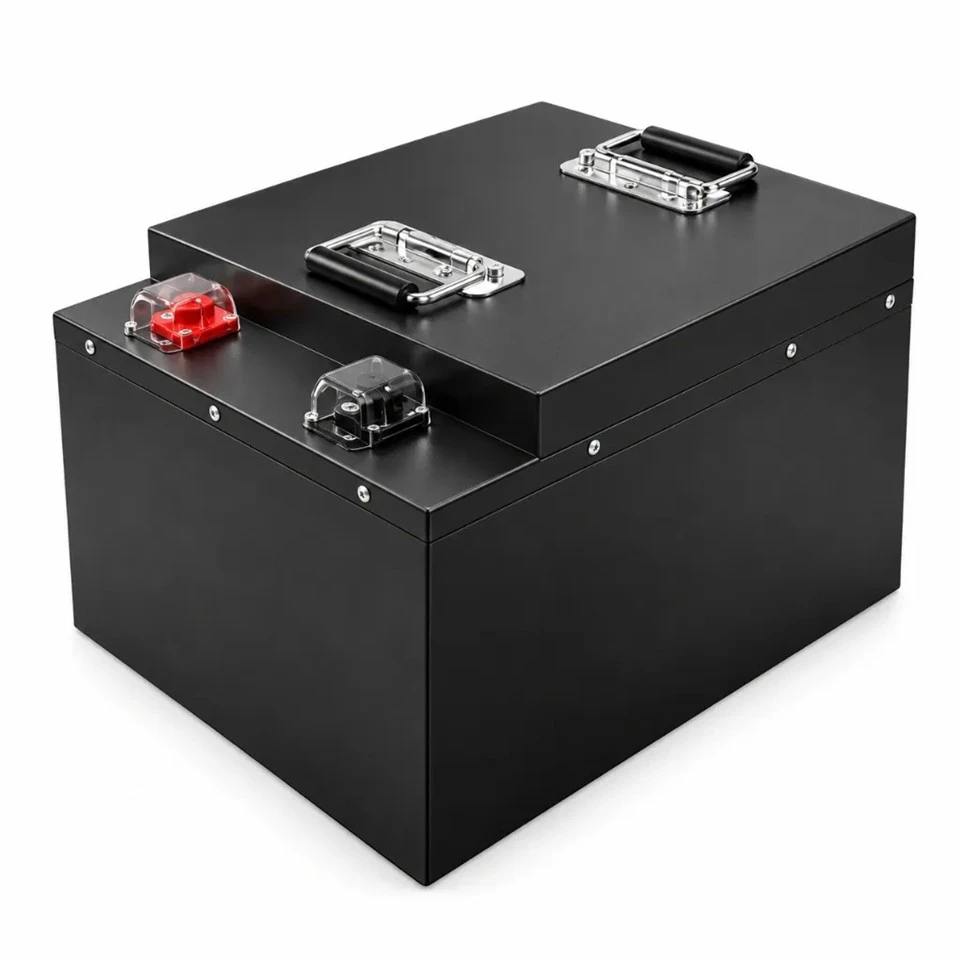

24V 200Ah LiFePO4 Floor Scrubber Battery (GEB-FCM-02)
The GEB 24V (25.6V) 200Ah Heavy-Duty LiFePO4 Floor Scrubber Battery Pack (Model: GEB-FCM-02) provides an ultra-high energy reserve of 5,120Wh for large commercial ride-on scrubbers, heavy-duty industrial sweepers, and autonomous cleaning robots. Powered by 8S1P Grade-A high-capacity prismatic LiFePO4 cells with a heavy-duty 200A continuous BMS (400A 30s peak), this industrial pack delivers full 6–8 hour shift operation without mid-day opportunity charging. Equipped with dual recessed carry handles, heavy-gauge steel casing, and insulated M8 terminal studs.
Description
General Electronics Technology Co., Ltd. is one of the leading manufacturers and suppliers of 24v 200ah lifepo4 floor scrubber battery (geb-fcm-02) in China. We are committed to providing high quality custom service and OEM&ODM service to global clients. Please feel free to wholesale durable lithium battery packs in stock here and get quotation from our factory.
Commercial Scrubber Power & Engineering Overview

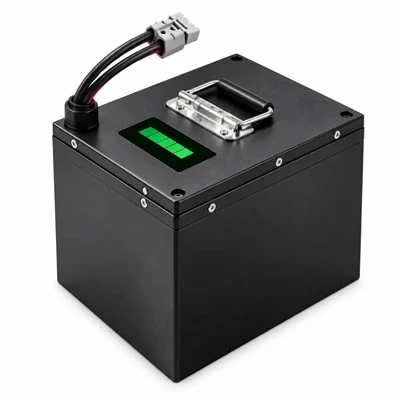

This 24V (25.6V) 100Ah lithium iron phosphate (LiFePO4) battery pack (8S1P, 2560Wh) is engineered for commercial walk-behind floor scrubbers and compact industrial sweepers. Built with a 100A continuous BMS and integrated LCD display, it directly replaces 24V lead-acid/AGM battery banks. Before retrofitting, verify compartment tray clearance (350 × 330 × 210 mm), Anderson SB175/M8 connector polarity, and confirm your battery charger is calibrated to a 29.2V LiFePO4 charge curve.
Verified Engineering Specifications (GEB-FCM-01)
| Technical Parameter | Factory Benchmark & Tolerance Range |
|---|---|
| Model | GEB-FCM-01 |
| Nominal Voltage | 25.6V (Operating Range: 20.0V - 29.2V) |
| Rated Capacity | 100.0Ah (2,560.0Wh @ 0.2C discharge) |
| Cell Type & Configuration | Grade-A Prismatic LiFePO4 / 8S1P (8 Cells in Series) |
| Continuous Discharge Current | 100A (1.0C continuous rating) |
| Peak Discharge Current | 200A (≤ 30 seconds pulse) |
| Charge Cut-off Voltage | 29.2V ± 0.2V (Recommended 20A - 30A charger) |
| Discharge Cut-off Voltage | 20.0V |
| Enclosure Dimensions (L × W × H) | 350 × 330 × 210 mm (13.78 × 12.99 × 8.27 in) |
| Total Battery Weight | 24.0 kg (52.91 lbs) |
| Terminal Type | Heavy-Duty M8 Bolt Terminals & Anderson SB175 / SB50 Disconnect |
| Cycle Life | ≥ 3,500 cycles (@ 25°C, 80% DoD, 0.5C/0.5C, residual capacity ≥ 80%) |
| Operating Temperature | Charge: 0°C ~ 45°C | Discharge: -20°C ~ 60°C |
| Enclosure Material | Powder-Coated Sheet Steel with Stainless Steel Folding Handle & Digital LCD |
| Certifications | UN38.3, MSDS, CE, RoHS, ISO9001 Factory Quality Standard |
Floor Scrubber & Sweeper Machinery Compatibility
Compatible Commercial Equipment: Tennant T300 / T3 / T2, Nilfisk SC400 / SC500 / SC450, Kärcher B 40 / B 60 W, Taski swingo 755 / 855, Hako Scrubmaster B30 / B45, Factory Cat 24V commercial walk-behind scrubbers.
Pre-Installation Check: Confirm battery compartment cavity exceeds 360 × 340 × 220 mm. Verify that the on-board charger is programmed to a 24V LiFePO4 profile (29.2V absorption, 0V float or disabled float) rather than lead-acid desulfation/equalization mode.
Heavy-Duty Industrial Safety Architecture
- Premium Grade-A LiFePO4 Prismatic Cells: Intrinsically safe chemistry eliminates thermal runaway risks even under severe vibration, deep discharge, or high continuous scrubbing motor loads.
- High-Current Industrial BMS: Integrated solid-state battery management system continuously monitors individual cell voltages, pack temperature, and discharge currents up to 200A (≤ 30 seconds pulse).
- Drop-in Lead-Acid Replacement: Eliminates acid spills, terminal corrosion, water refilling, and explosive hydrogen gassing during indoor facility charging.
- Heavy-Gauge Sheet Metal Casing: Powder-coated industrial enclosure with reinforced seams protects internal electronics from floor cleaning detergents, moisture, and mechanical shocks.
OEM / ODM Customization & Sourcing Workflow
Shenzhen General Electronics Technology Co., Ltd. (GEB) manufactures specialized custom lithium solutions for commercial cleaning equipment OEMs and fleet management companies:
Customizable discharge ports (Anderson SB50, SB175, REMA DIN 80/160, M8 studs), integrated state-of-charge LCD displays, and RS485/CAN communication options for robotic scrubbers.
Certified UN38.3 test reports, MSDS, CE, and RoHS documentation. Fully compliant dangerous goods sea freight (LCL/FCL) with door-to-door delivery.
Frequently Asked Questions (FAQ)
Q1: Can I charge this battery with the scrubber's existing lead-acid charger?
A: You must ensure the charger has a LiFePO4 setting or replace it with a dedicated 24V (29.2V) lithium charger. Standard lead-acid equalization cycles (31V+) can damage the BMS.
Q2: How much runtime can I expect from a single charge?
A: For the 100Ah pack (GEB-FCM-01), typical walk-behind scrubbers (consuming 25A-35A) achieve 3.5 to 4.5 hours of continuous runtime. For the 200Ah pack (GEB-FCM-02), ride-on scrubbers achieve 6 to 8 hours of full-shift operation.
Q3: What is the sample lead time and MOQ for OEM orders?
A: Evaluation samples are available with a 7-day turnaround. Standard wholesale MOQ is 2 to 10 units, with volume discounts available for fleet operators and machine manufacturers.
